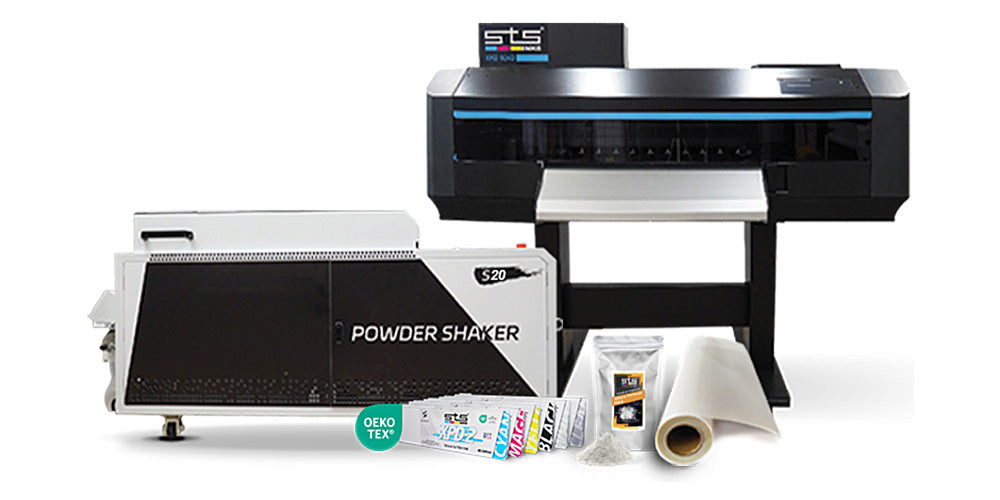

The STS XPD 924D DTF Printer and 24" Automatic S20 Powder Shaker Bundle is a true powerhouse setup that delivers unmatched speed and performance for high production environments. This bundle includes everything you need to start printing right away: the high-speed XPD 924D printer, the Automatic S20 Powder Shaker, professional RIP software, a full set of STS inks, DTF film, and premium adhesive powder.
The XPD 924D can print up to 188 square feet per hour, averaging about 145 shirts per hour, making it one of the fastest and most reliable DTF printers on the market. What really sets it apart is the exceptional color vibrancy, precision, and consistency it delivers. Whether you’re scaling up production or getting into DTF printing for the first time, this complete bundle is designed to help your business print smarter, faster, and with superior quality.
Built for performance
- Max Print Speed - 188 sqft/hr or 145 shirts per/hr
- High-precision Heavy-duty Aluminum Rail System for High Quality and Stable Printing.
- Ease-of-use Side Mounted LAN and Power Plugs and LED Operation Panel.
- New AccuFine HD Dual-Printheads Provide Faster Speeds with Exceptional Quality.
- Built-in Sensors for Operator-Driven Automatic Bi-directional and Page feed Alignments.
- Improved Front Dryer System for 20% Faster Ink Dry Times.
- Internal LED Lighting for Unobstructed Print.
- Updated Media Angles and Media Feeding Mechanism to Allow for Easy Loading and Page Feed for DTF Film.
- Viewing and Maintenance Access.
- Includes the Mutoh Status Monitor (MSM) Companion Software for Convenience and Efficiency: Records Print History, Job Cost Analysis, Remote Access.
THE XPD 924D IS PACKED WITH STANDARD FEATURES SUCH AS:
- Dropmaster 2 (Automatic Bi-Directional Alignments)
- Feed Master (Automatic Feed Roller Adjustment)
- i-screen Print Effects- Multiple Waveforms that Mitigate Banding
- Media Tracker (Roll Remainder Tracking)
- White Ink Circulation
- Auto Cleaning and Maintenance
- Washability Test AATCC61-2A [AATCC 61 Method 2A]
engineered for consistency
- HMI adjustable temperature.
- 7″ LCD Screen
- Top & bottom Infrared drying.
- Motorized Heavy-Duty Pistons for Automatic Opening and Closing of the Shaker Hood.
- Auto and manual interface.
- Mesh/belt driven.
- Can be operated independently or together with STS DTF printer.
- Automatic TPU Powder weight distribution control.
- TPU Chamber Safety Sensor for Wandering Hands
- Tension Feed/Take-up reel.
- Vacuum conveying system.
- Built-in air purifier with charcoal and HEPA filter.
- Dual Auto Kill Switch Sensors to Help Prevent Overheating and Fire.
CHARACTERISTICS
- High-Speed Production – Maximize efficiency with rapid print output.
- Cost-Effective Ownership & Operation – Minimize costs while maximizing performance.
- Durable Transfers – Achieve longevity comparable to screen printing.
- Exceptional Flexibility – Prints stretch and recover seamlessly.
- Versatile Application – Adheres to any fabric with ease.
- Fast Heat Press Time – Apply transfers in under 15 seconds.
specifications
- PRINTING METHOD Drop-on-demand Micro Piezo Inkjet Technology
- PRINT HEAD HEIGHT Four-level adjustment: 1.5mm, 2.0mm, 2.5mm, 4.0mm
- PRINT HEAD 2 (staggered)
- MAX RESOLUTION 1200×1200 dpi (1200/900/600/300 dpi print modes)
- MEDIA WITH 600 cm 25″
- MEDIA CAPACITY ø 5.9” dia / 2” & 3” cores | Roll media 66lbs or less
- MAX MEDIA THICKNESS Low 1 0.3mm, Low2 0.8mm, Mid. 1.3mm, High 2.8mm
- MAX PRINTABLE WIDTH 24.5 in
- MAX PRINT SPEED 17.5 sqm/hr – 188 sqft/hr
- RIP SOFTWARE CADlink™ Digital Factory 11 / IneditTM neoStampa
- INTERFACE Gigabit-Ethernet (1000BASE-T)
- POWER REQUIREMENTS Four-level adjustment: 1.5mm, 2.0mm, 2.5mm, 4.0mm
- PRINT HEAD TEMPERATURE 68-77°F / 20-26° C
- HUMIDITY 40-55%
- POWER CONSUMPTION Main: Operation status 70W or less Standby: 30W or less
- DIMENSIONS (WxDxH) Printer including stand: 70.68″x35.23″x56.48″ cover closed
- WEIGHT Body: 310Ib I Stand: 70.54Ib / Body: 140kg I Stand: 32kg
- INK TYPE DTF
- INK SET 4 color (CMYK) | White
- VOLUME 500 ml Direct to Film Ink Cartridge XPD
- NO. OF SLOTS 6
