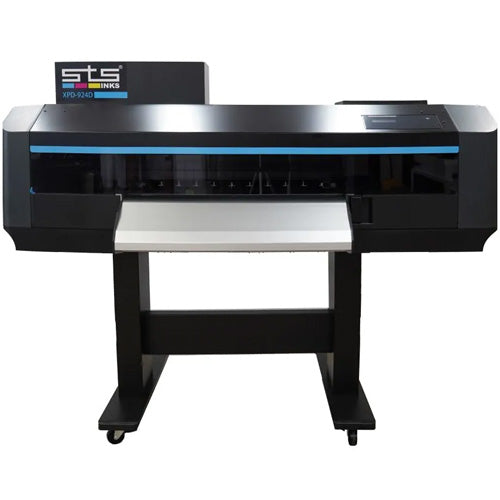

STS Inks XPD-924D DTF Printer
The STS Inks XPD-924D is a 24-inch direct-to-film printer built for apparel decorators and transfer producers. Dual staggered AccuFine HD printheads, continuous white ink circulation and automated alignment help produce detailed, vibrant transfers while keeping a busy workflow moving.
A 24-inch DTF printer built for repeatable production
The XPD-924D prints color and white onto DTF transfer film, ready for adhesive powder, curing and heat pressing. Its staggered dual-head design supports detailed transfers and production runs. Continuous white ink circulation helps reduce settling, while automatic cleaning and operator-driven alignment simplify routine upkeep.
Pair it with the STS S-20 powder shaker for an automated print-to-cure workflow, or choose the printer on its own to fit an existing DTF setup.
Why print shops choose the STS XPD-924D
Dual AccuFine HD printheads
Two staggered printheads support fine detail, smooth gradations and efficient 24-inch DTF production.

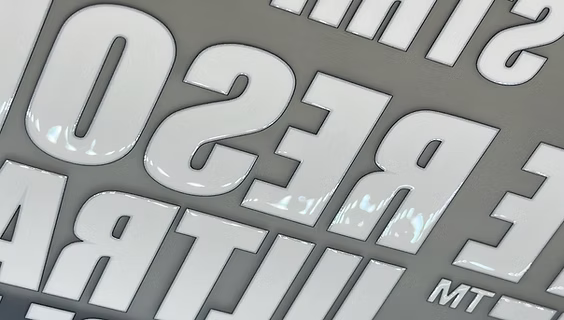

Continuous white ink circulation
The circulation system keeps white ink moving to help reduce settling and maintenance interruptions.

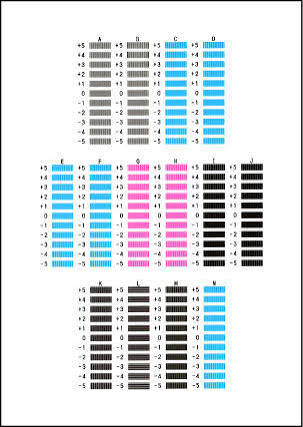

Automatic alignment and media control
DropMaster 2, Feed Master and Media Tracker help with bidirectional alignment, feed adjustment and roll tracking.

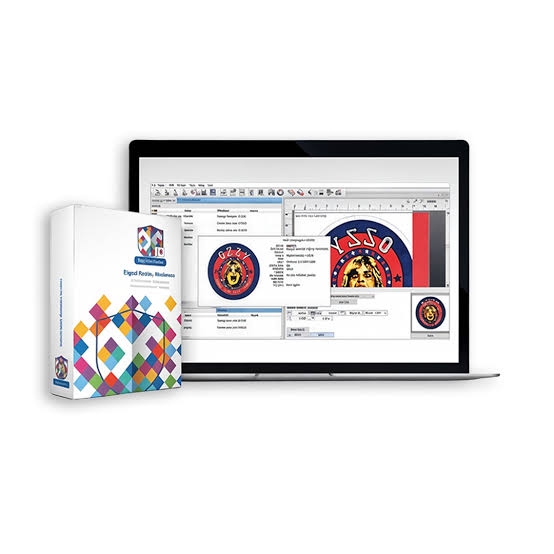

Digital Factory RIP 11
The included CADlink RIP provides color profiles and controls for color and white underbase output.
What you can make with the XPD-924D

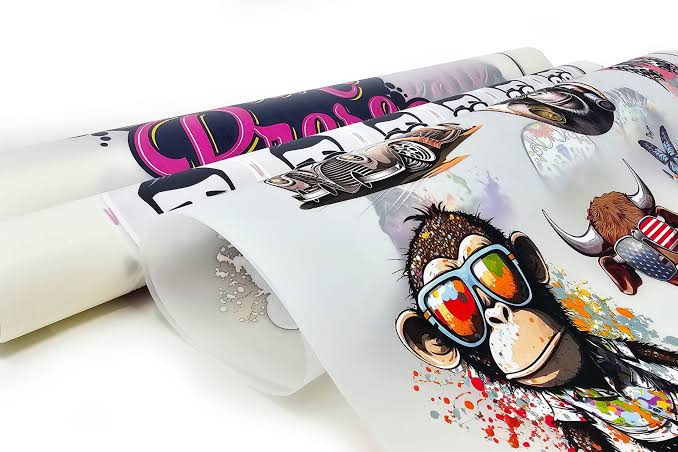

Produce full-color DTF transfers for apparel and other compatible textiles, then cure and heat press with the appropriate equipment.
STS XPD-924D technical specifications
| Printing method | Drop-on-demand Micro Piezo inkjet |
| Printheads | Two staggered AccuFine HD |
| Maximum printable width | 24.5 in |
| Maximum resolution | 1200 × 1200 dpi |
| Production speed | Up to 190 sq ft/hr at 900 × 600 dpi, 3-pass mode |

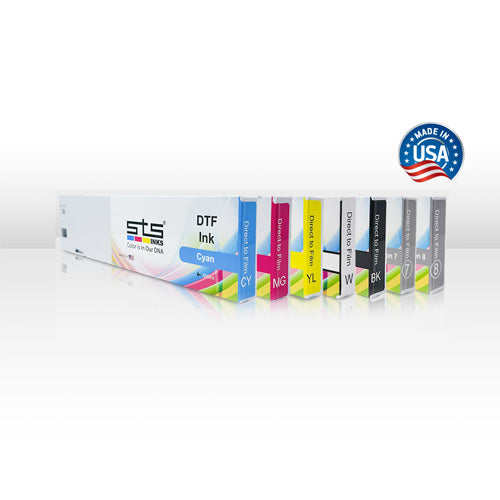

| Ink configuration | CMYK + White; six 500 mL cartridge slots |
| RIP software | CADlink Digital Factory 11 included |
| Connectivity | Gigabit Ethernet (1000BASE-T) |
| Printer and stand dimensions | 70.68 × 35.23 × 56.48 in, cover closed |
XPD-924D printing speeds
Rated print speeds vary with resolution and pass mode. Choose the setting that fits your output and production needs.
| Resolution | Pass mode | Rated speed |
|---|---|---|
| 900 × 600 dpi | 3-pass | 190 sq ft/hr |
| 600 × 1200 dpi | 4-pass | 145 sq ft/hr |
| 900 × 1200 dpi | 6-pass | 97 sq ft/hr |
| 1200 × 1200 dpi | 8-pass | 75 sq ft/hr |

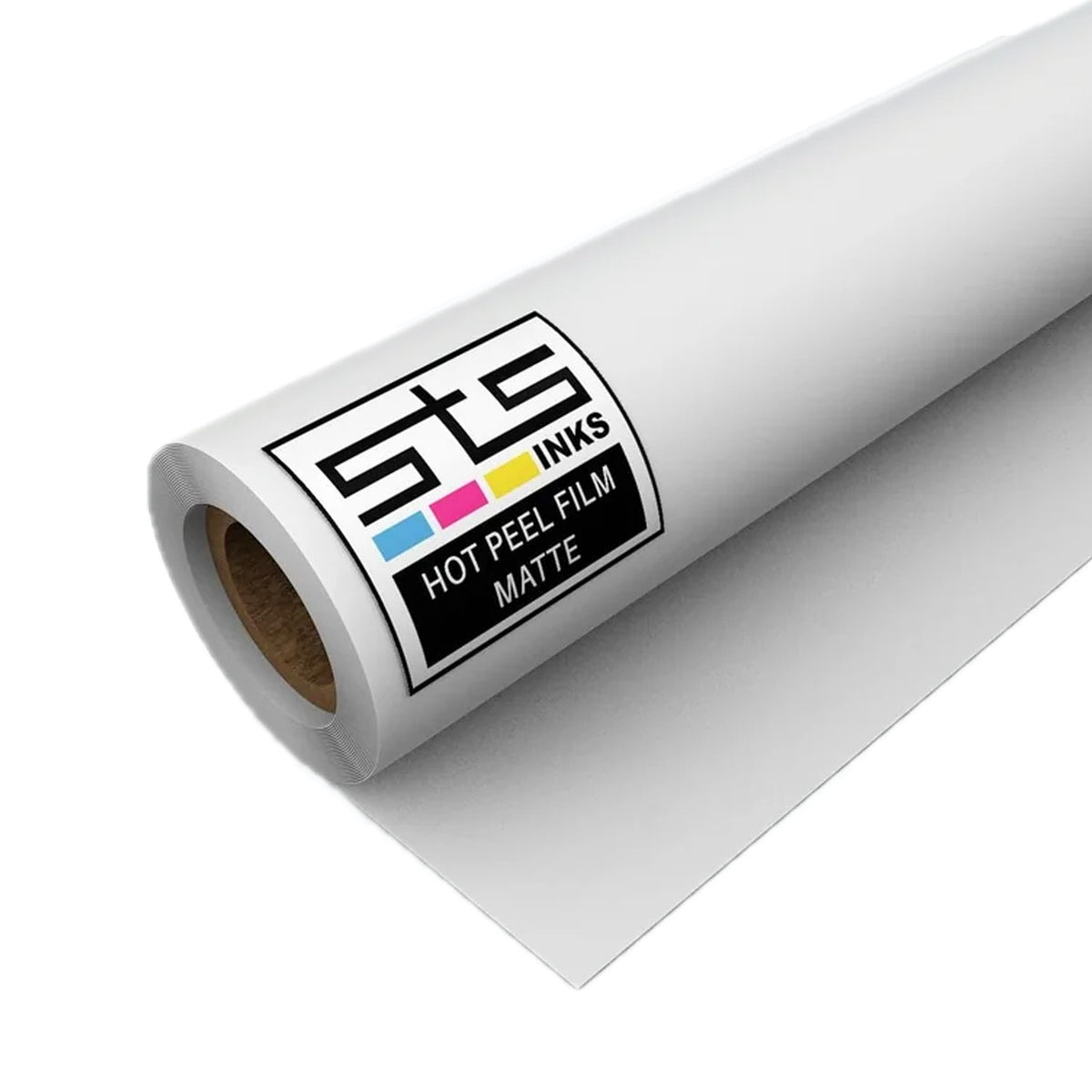

DTF film for 24-inch production
Choose compatible STS hot- or cold-peel DTF film for transfer production. Powder and curing equipment complete the workflow.
Shop STS DTF Film
See the STS XPD-924D DTF printer in action
XPD-924D standard features
- DropMaster 2 automatic bidirectional alignment
- Feed Master automatic feed roller adjustment
- i-screen print effects with waveforms to mitigate banding
- Media Tracker for remaining roll tracking
- Continuous white ink circulation
- Automatic cleaning and maintenance
- Washability test: AATCC 61-2A (AATCC 61 Method 2A)
Ask us about matching the printer with an S-20 powder shaker, film, powder and ink.
White ink circulation, automatic cleaning and maintenance features support production.
Talk with us about the right DTF configuration and supplies for your shop.
