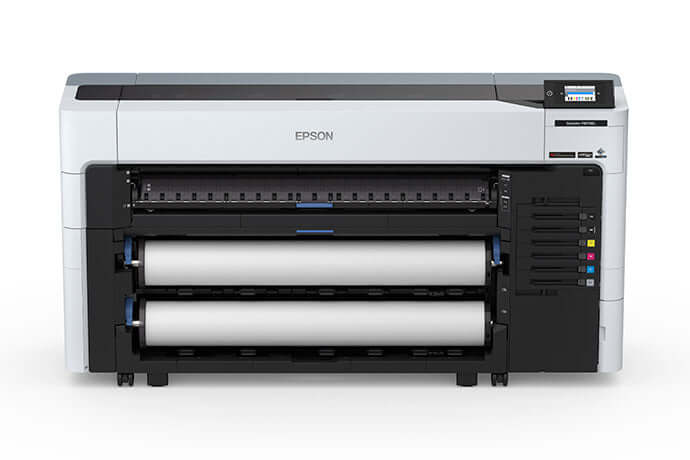

Epson SureColor P8570DL 44-Inch Wide-Format Dual-Roll Printer with High-Capacity 1.6 L Ink Pack System
The SureColor P8570DL combines a compact front-operated design, dual media rolls and six-color UltraChrome PRO6 pigment ink for high-volume photo and graphics production.
Photo quality print engine speed reaches up to 195 ft²/hr. Actual throughput varies by job and settings.

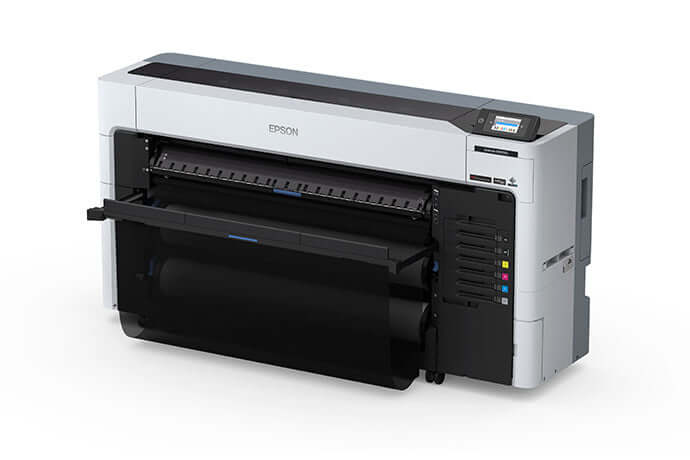

Two rolls. One streamlined workflow.
Load two media types or sizes and switch between them automatically. The second roll can also serve as an integrated take-up reel for longer roll-to-roll runs.
The flat-top design and complete front operation help this printer fit into busy production spaces. Its included Adobe Embedded Print Engine processes PDF and PostScript files on board.
Made for print shops that keep moving

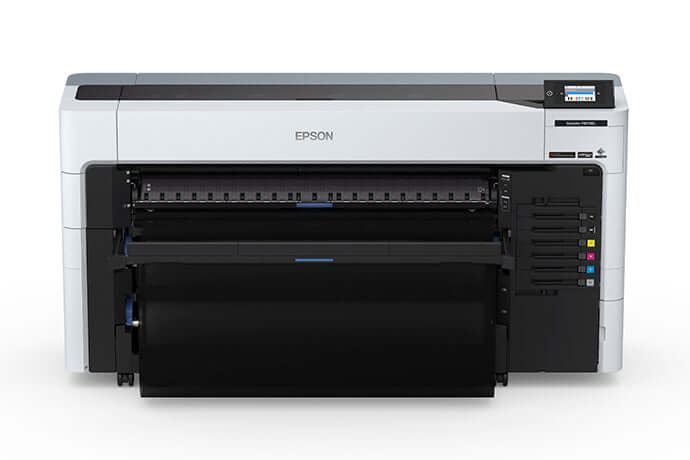

Flexible dual-roll handling
Automatically switch between media types or use the second roll as a take-up reel.

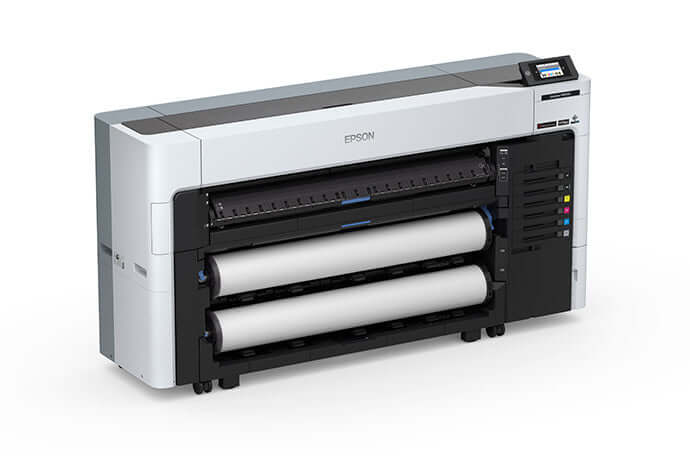

Six-color photographic output
UltraChrome PRO6 with Gray supports vibrant color and smooth, neutral monochrome results.
PDF-ready production
The standard Adobe Embedded Print Engine handles PDF and PostScript files directly.

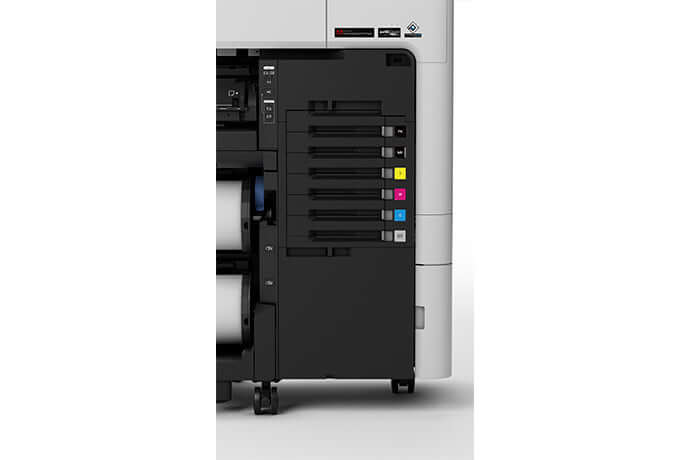

UltraChrome PRO6 ink packs
Six-color pigment ink, including Gray, in 1.6 L T53E packs. The printer does not include ink. Select Photo Black, Cyan, Magenta, Yellow, Gray and Matte Black to initialize it.
Find P8570DL Ink →From photographs to posterboard
Use 10–44 inch rolls or sheets from 8–44 inches wide. The printer also accepts rigid posterboard up to 1.5 mm thick; media is sold separately.
Shop Aqueous Media →Production that adapts to the job
Photography & portraits
Fine art & canvasPosters & display graphicsP8570DL at a glance
| Model | SCP8570DL |
| Printer width | 44 in |
| Ink | UltraChrome PRO6, six-color pigment |
| Ink pack size | 1.6 L per color; sold separately |
| Printhead | 2.64 in PrecisionCore MicroTFP |
| Maximum resolution | 2400 × 1200 dpi |
| Minimum ink droplet | 3.5 picoliters |
| Photo quality engine speed | Up to 195 ft²/hr* |
| Roll media width | 10–44 in; two front-loading rolls |
| Cut sheet width | 8–44 in |
| Posterboard thickness | 0.8–1.5 mm |
| Take-up reel | Integrated second-roll function |
| Touchscreen | 4.3 in |
| Print engine | Adobe Embedded Print Engine included |
| Connectivity | USB 3.0, Gigabit Ethernet, Wi-Fi |
| Dimensions (W × D × H) | 73 × 19.6 × 38.4 in; basket extended depth 32.6 in |
In the box
- SureColor P8570DL printer with Adobe Embedded Print Engine
- Two installed roll media adapters
- Preinstalled maintenance boxes
- Start Here setup poster
- AC power cable
